Gate
Gate ASTER V3 SE Expert
Code: AST3S-EM
Product description

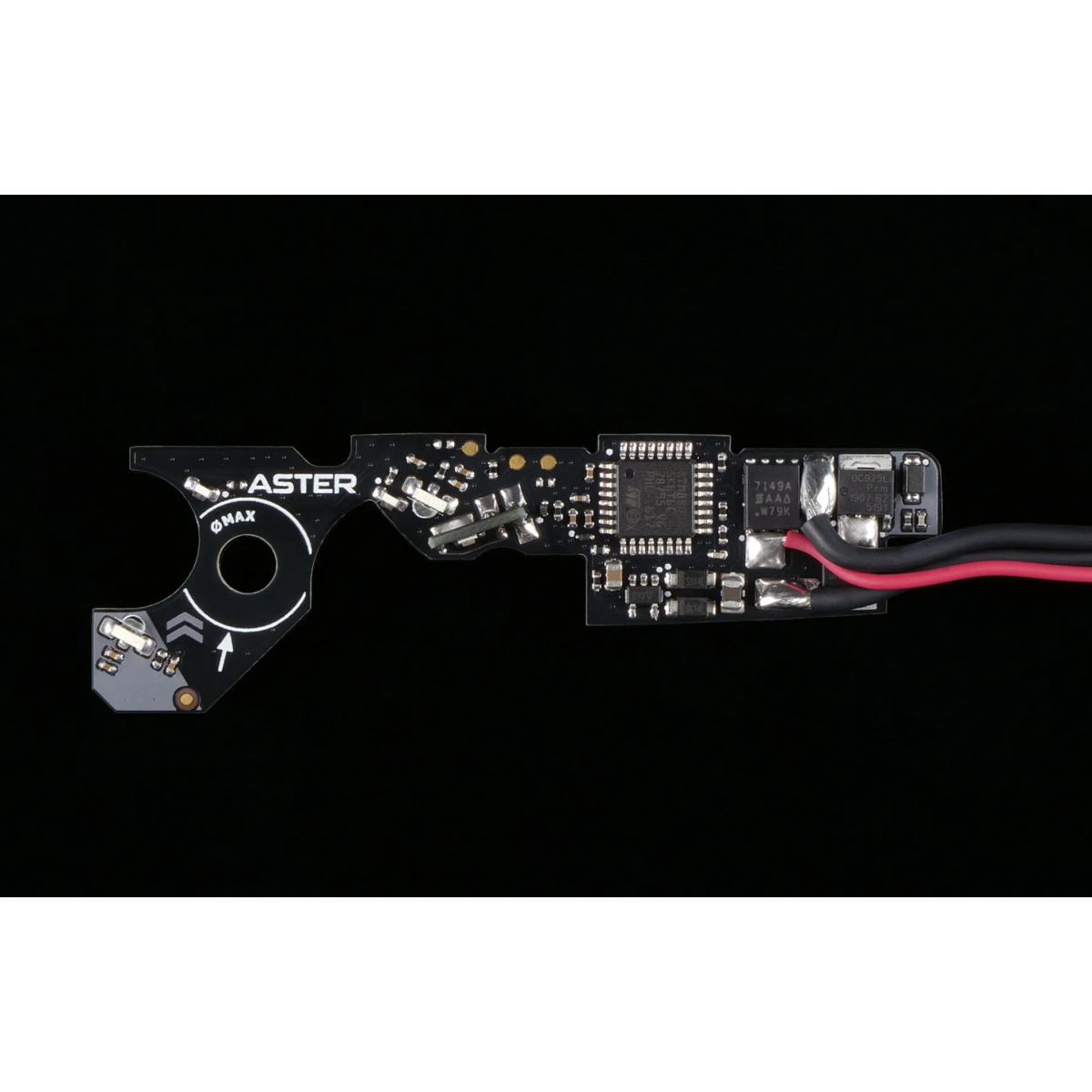

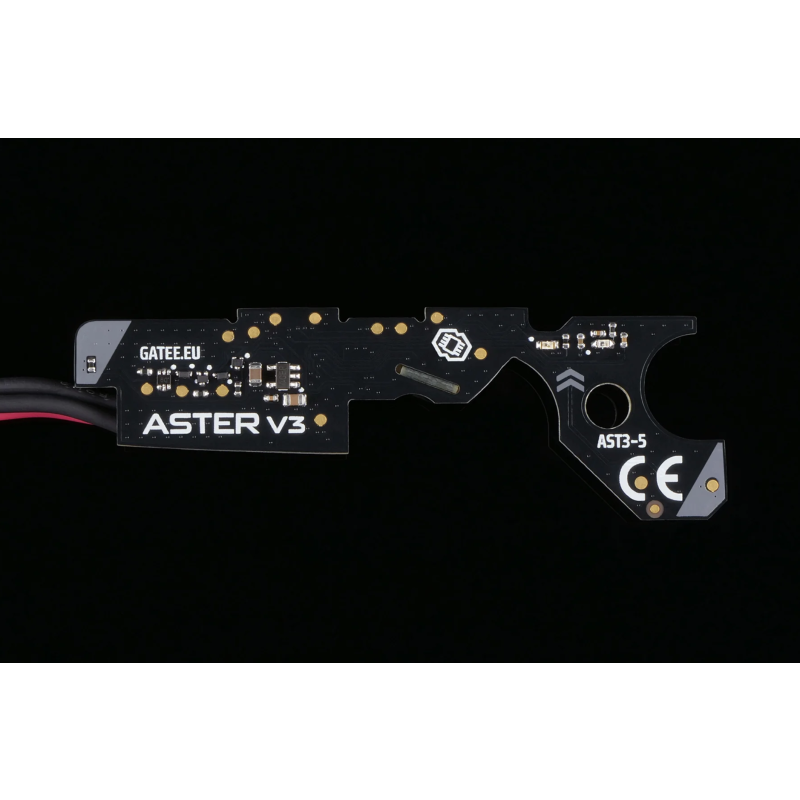

ASTER V3 SE raises the price-performance ratio including new functions programmable via trigger. Now, out-of-the-box, you can set sensitivity from hair to full movement. Improved Programming via Trigger gives you new settings like automatic Pre-Cocking (LOW, MID, HIGH), trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode and new SAFE - SEMI - BINARY selector mode. Calibration, DTC codes - all available just via trigger and selector movement. ASTER's smart fuse protects your AEG’s battery, motor, and the controller, even in the case of reverse battery connection. This feature, along with the optical sensors, makes ASTER V3 SE one of the most durable ETUs on the market.
Supply Voltage Range
3.75-12.9 V
Current Consumption
23 mA
Low Power Mode
288 µA
Dimensions (Length x Width x Height)
43.8 mm x 28.7 mm x 7.2 mm
Finished Product Weight
22.25 g
Operating Temperature Range
min. -15°C max. + 50°C
Relative Humidity
≤ 80%
Connect your ASTER V3 SE with the GCS App and get total control of your AEG
You choose how to configure ASTER V3 SE – simply via trigger or through USB-Link / Blu-Link and our advanced GCS App. You can ask your technician to update ASTER V3 SE firmware using Blu-Link or USB-Link, carry out diagnostics or change settings in a very convenient way. You can also get your own Blu-Link and use the smartwatch app, giving you real-time data to reinforce your tactical decisions.
What makes ASTER V3 SE so special?
Everything you need out-of-the-box
Quantum Trigger included in the kit
No need to use USB-Link for installation and configuration
New noise-resistant trigger detection algorithm
Hair-trigger out-of-the box. Even 60 trigger sensitivities for the 1st mm (0.04 in) of movement
Additional protection against interferences thanks to multi-layer PCB with EMC shield
Automatic Pre-Cocking: LOW / MID / HIGH
Trigger sensitivity adjustment without any limitation
Improved cycle detection
Active brake adjustment: Adaptive / 100% / 60% / Brushless motor / OFF
New selector mode: SAFE - SEMI - BINARY instead of SAFE - BINARY - AUTO
GCS App allows for making firmware updates via the internet, which enables quick applying of improvements
